Elite

CAMaster March Madness Sale CAMaster Sale Banner

ELITE INDUSTRIAL PERFORMANCE AT A DEEP DISCOUNT

With CAMaster’s March Madness sale, save $12,000 on a new ELITE CNC Router.

CAMaster Sale Banner

To triumph over the competition, you need better machine tools.

Whether you are machining composites, wood, or non-ferrous materials, the precision-engineered Elite from CAMaster offers rapid and repeatable success.

Proudly built in the USA, it comes standard with features typically found in higher-ticket CNC routers. Add versatility to your operation with extended gantry heights, drill banks, vacuum pod systems, aggregate heads, knives, and more.

  • 12 HP HSD ATC Spindle
  • 10 Tool Automatic Tool Changer
  • All-Steel Welded Frame
  • All-Steel Gantry and Supports
  • Digital AC Servo Motor & Drive System with Absolute Encoders
  • SmartCore Next-Gen CNC Motion Controller
  • High Precision Planetary Gearboxes
  • THK 25 MM Precision Rails & Bearings
  • Phenolic Vacuum Table Top
  • Failsafe Motor Brake System
  • Pop-up Locating Pins
  • PC Front End Control
  • Custom Built Monitor Stand with On/Off, Cycle Start/Stop, E-Stop and USB
  • Vectric VCarve Pro Software
  • Free Tech Support and for Life of the Machine
  • Free Live Direct Online Technician

TABLE SIZES
61” x 61”
61” x 97”
61” x 121”
61” x 145”
73” x 145”

Unlock Year-End CNC Savings: Boost Your Production with CAMaster!

Unlock Year-End CNC Savings:
Boost Your Production with CAMaster!


End of Year Blowout Special!
3.99% Interest Rate
With No Payments for 120 Days
OR
Up to 15% Off Any Machine!


Now’s the time to invest in the best CNC routers. Act fast—these exclusive offers end on December 31, 2024!
With two great options to fit your budget, owning a best-in-class CAMaster CNC router has never been easier!

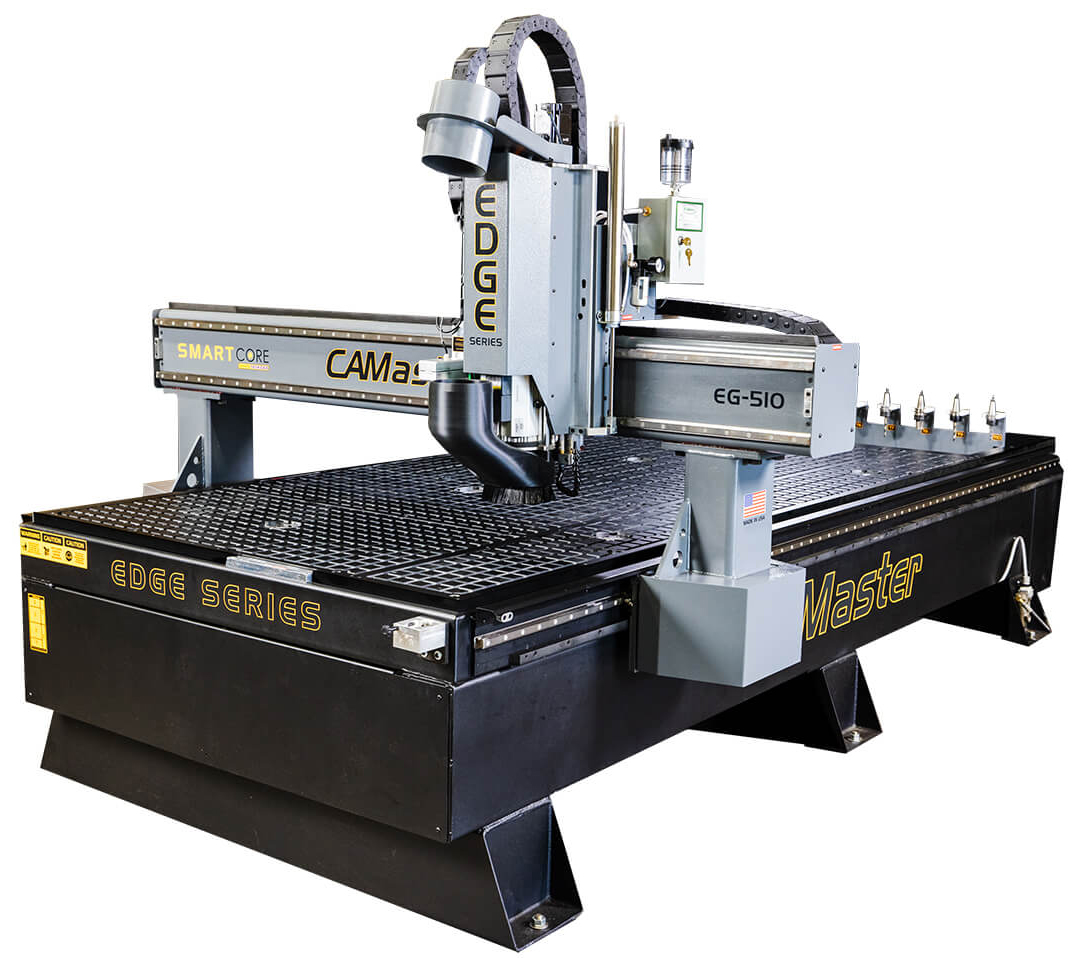

Edge Series


The Edge Series is our flagship CNC router for industrial production. Built with a heavy-duty welded steel frame, it ensures accuracy and stability.

Specifications:

  • Table sizes: 4’ x 8’, 5’ x 10’, 5’ x 12’ and 6’ x 12’
  • Spindle Power: 16 HP HSK F63 ATC Spindle by HSD
  • Drive System: Helical Rack and Pinion Drive
  • Rapid Travel Speed: Up to 3,200 IPM / Cut Speed 1,800 IPM
  • Controller: SmartCore PLC Controller with High Speed Ethernet Communication
  • Optional Features: Custom Table Sizes are Available, Extended Gantry Heights, Drill Banks, Vacuum Pod Systems, Aggregate Heads and Cutting Tools.

For more details, visit CAMaster Edge Series.

CAMaster EDGE Series
CAMaster Elite Series

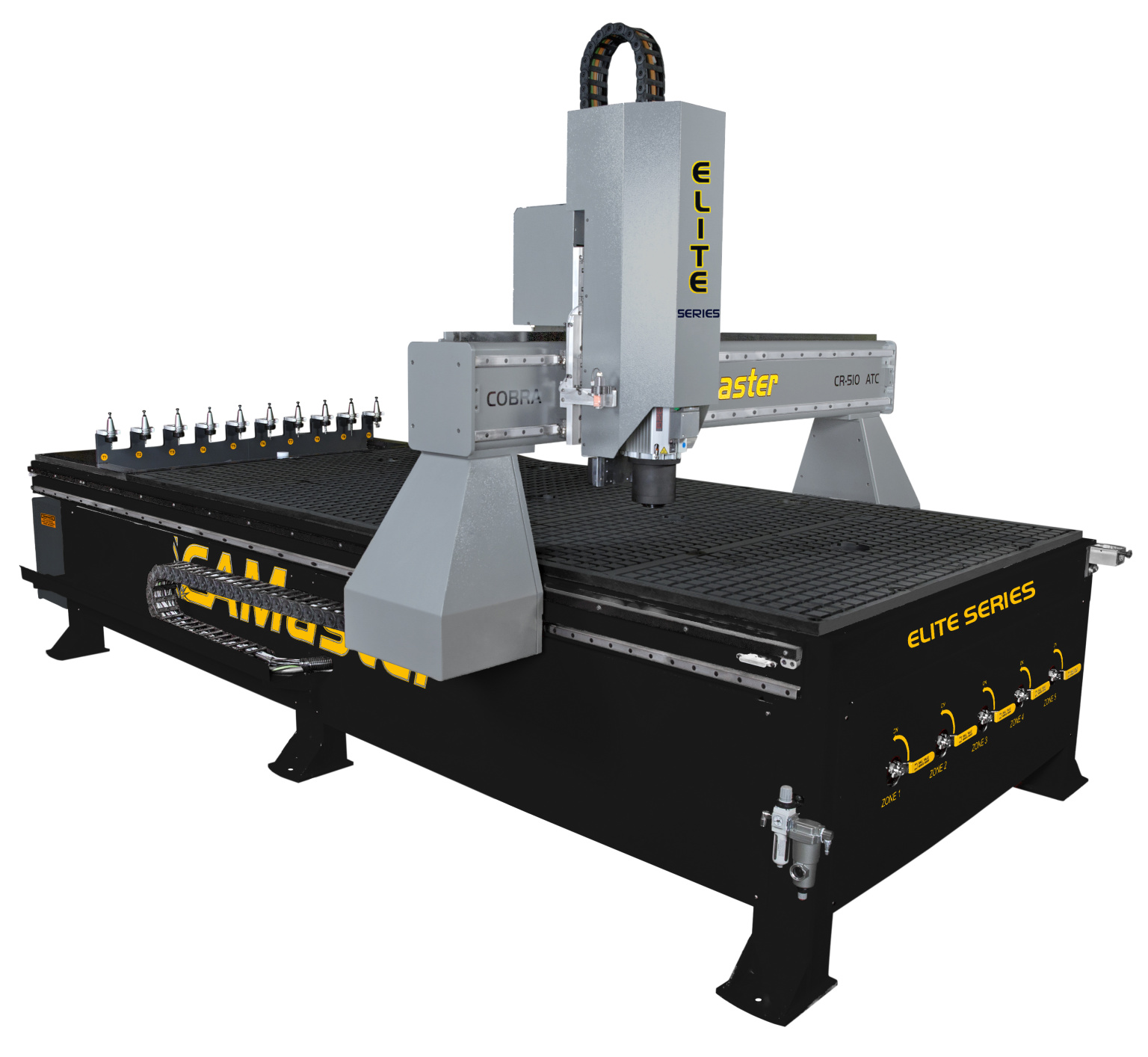

Elite


The Elite Series is engineered for high-production shops and craftsmen. It features a robust steel frame, advanced dual-drive gantry system, and powerful servo motors, ensuring precision and reliability.

Specifications:

  • Table sizes: 4’ x 8’, 5’ x 5’, 5’ x 10’, 5’ x 12’ and 6’ x 12’
  • Spindle Power: 12 HP HSD ATC spindle
  • Drive System: Helical Rack and Pinion Drive System
  • Speed: Rapid travel up to 2,500 IPM / Cut Speed 1,100 IPM
  • Tool Changer: 10-position Automatic Tool Changer (ATC)
  • Vacuum Table: Phenolic Vacuum Table Top
  • Controller: SmartCore PLC Controller with High Speed Ethernet Communication
  • Optional Features: Extended Gantry Heights, Drill Banks, Vacuum Pod Systems, Aggregate Heads, Knives and More.

For full details, visit CAMaster Elite Series.

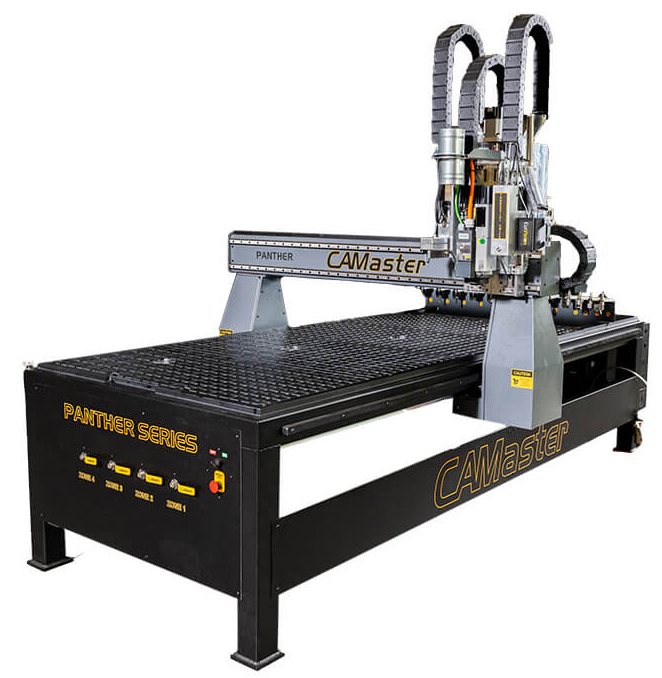

Panther


The Panther Series is a powerful mid-range CNC router designed for growing businesses. It combines industrial-level features with affordability. With a solid gantry, ball screw drive, and optional vacuum table, the Panther delivers precision and reliability in a compact footprint.

Specifications:

  • Table Sizes: 4’ x 4’, 4’ x 8’ and 5’ x 10’
  • Spindle Power: 6 HP HSD ATC Spindle
  • Drive System: Helical Rack and Pinion Drive System
  • Rapid Travel Speed: Up to 1,800 IPM / Cut Speed 1,100 IPM
  • Controller: SmartCore PLC Controller with High Speed Ethernet Communication
  • Optional Features: Tangential Knives, Vision Registration Camera, Laser Engraver, Misting Unit and More.

For full details, visit CAMaster Panther Series.

CAMaster Panther Series
CNC machine

STINGER ATC


The Stinger ATC Series is a compact CNC router built for small businesses looking to add versatile production. An integrated Automatic Tool Changer (ATC) allows for seamless multi-tool operations. The machine’s robust steel frame and ball screw drive ensure accurate and vibration-free machining.

Specifications:

  • Table sizes: 4’ x 4’ and 4’ x 8’ feet
  • Spindle Power: 3 HP HSD
  • Drive System: Centroid PLC Controller with Ethernet
  • Tool Changer: 6-position ATC
  • Rapid Travel Speed: Up to 1,000 IPM / Cut Speed 500 IPM
  • Controller: PC that Runs Windows 11 PRO with 19” Monitor, Keyboard, and Mouse
  • Optional Features: Configurable – Vacuum Hold Down, Laser Engraver, Misting Unit and More.

For more details, visit CAMaster Stinger ATC Series.

Desktop Series


The Desktop Series combines professional-grade precision with a compact benchtop design, ideal for smaller shops or hobbyists needing high-quality performance in tight spaces. Also known as the Stinger I, this is the most robust bench top CNC router on the market.

Specifications:

  • Table Size: 2’ x 4’
  • Spindle Power: 3.5 HP Variable Speed Router
  • Drive System: Digital Steppers on All Axes
  • Rapid Travel Speed: Up to 600 IPM / Cut Speed 350 IPM
  • Controller: Centroid PLC Controller with Ethernet

For more information, visit CAMaster Desktop Series.

desktop cnc machine

Request a Quote

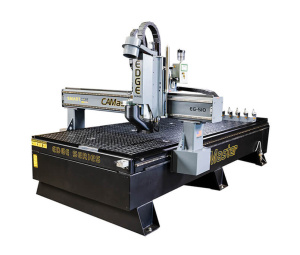

EDGE SERIES

edge router main

The Edge CNC Router is built for industrial-strength performance, designed to tackle high-volume production with precision and durability.

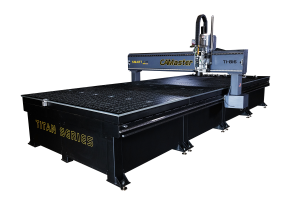

Titan XL

Titan XL

The Titan XL CNC Router is specifically engineered to process large sheets of ACM/MCM, High Pressure Laminates, Fiber Cement Board, Aluminum Extrusion, Aluminum Sheets and other Composite Panels in the fastest and most efficient way possible.
